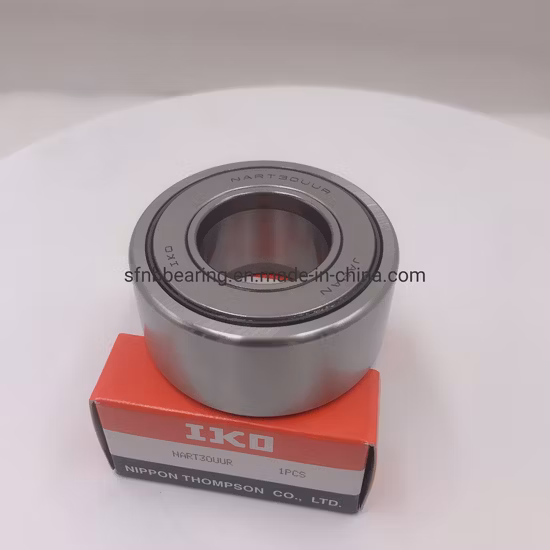

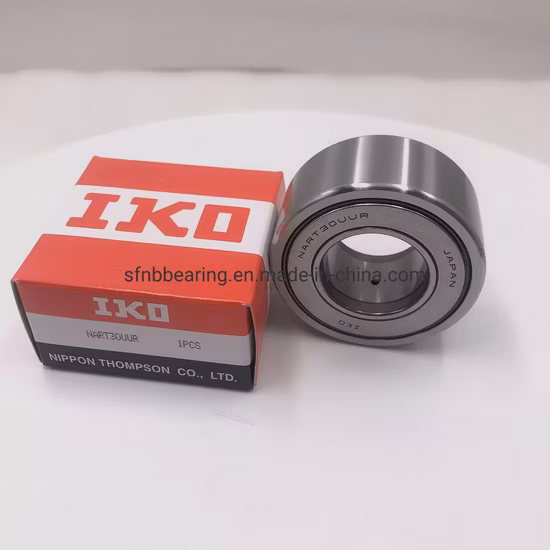

IKO Rolling Bearing Yoke Type Track Roller Nutr30 Needle Roller Bearing

Basic Info

Model NO.	NUTR30
Material	Bearing Steel
Spherical	Non-Aligning Bearings
Load Direction	Radial Bearing
Separated	Separated
Seals Types	Sealed
Clearance	C0 C2 C3 C4 C5 C9
Tolerance Codes	ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9
Hardness	60-64 HRC
Inner	30mm
Outer	62mm
Thickness	29mm
Weight	0.465kg
Cr W	40000n
C0r W	55000n
Fr Per	23400n
F0r Per	46000n
Transport Package	Single Box, Plastic Barrel, Carton, Tray
Specification	CE, ISO9001
Trademark	SFNB/Koyo
Origin	China
HS Code	8482800000
Production Capacity	200000PCS/Year

Packaging & Delivery

Package size per unit product 85.00cm * 85.00cm * 50.00cm Gross weight per unit product 0.500kg

Product Description

Welcome to choose KORTON INDUSTRIAL LIMITED.
NO 1. our adwantages:

1. 14 years bearing products manufacturing and 4 years exporting experiences.

2. OEM order and non-standard bearing order can be accepted.

3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, angular contact bearings, needle roller bearings, thrust ball bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.

4. Sample available

NO 2. Types of Cylindrical roller bearing

N series cylindrical roller bearing design The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NU series cylindrical roller bearing design The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ series cylindrical roller bearing design The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF series cylindrical roller bearing design The outer ring has one integral flange and the inner ring two integral flanges.
NP series cylindrical roller bearing design The outer ring has one integral flange and one non-integral flange in the form of a loose flange ring and the inner ring two integral flanges.
NUP series cylindrical roller bearing design The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN series cylindrical roller bearing design No outer ring and the inner ring two integral flanges.

NO 3. OEM all brand bearing

NO 4.Track Roller Bearing Models and Size:

BEARING CODE	BOUNDARY DIMENSIONS
	d	D	B	C	d1	r	r1
NUTR15	15	35	19	18	20	0.6	0.3
NUTR17	17	40	21	20	22	1	0.3
NUTR1542	15	42	19	18	20	0.6	0.3
NUTR1747	17	47	21	20	22	1	0.3
NUTR20	20	47	25	24	27	1	0.3
NUTR2052	20	52	25	24	27	1	0.3
NUTR25	25	52	25	24	31	1	0.3
NUTR2562	25	62	25	24	31	1	0.3
NUTR30	30	62	29	28	38	1	0.3
NUTR3072	30	72	29	28	38	1	0.3
NUTR35	35	72	29	28	44	1.1	0.6
NUTR3580	35	80	29	28	44	1.1	0.6
NUTR40	40	80	32	30	51	1.1	0.6
NUTR45	45	85	32	30	55	1.1	0.6
NUTR4090	40	90	32	30	51	1.1	0.6
NUTR50	50	90	32	30	60	1.1	0.6
NUTR45100	45	100	32	30	55	1.1	0.6
NUTR50100	50	100	32	30	60	1.1	0.6

NO 5. Our Bearing Factory:

Why Choose Us:

1. Jinan TIANYUAN bearing company has 14 years manufacture experience and is one of the biggest adjustment center in north of China.
2. We have large stock of original brand and our own brand bearing.
3. Sample is available.
4. We can accept OEM service.

Jinan Tianyuan Bearing Was founded in March 2008. We were principally engaged in the research, development and manufacture of bearings in the early stage. Now we are mainly engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.
